sPECIFiCATIONs
key features
-
Aerospace components are typically designed to meet stringent specifiactions and requirement, and AeroCase is no exception.
AeroCase is designed and tested to conform with U.S. Department of Defense Environmental Test Method Standard, MIL-STD-810G 516.6. This requires the device to be dropped 24 times from a height of 4 feet, on all edges, corners, and faces. AeroCase doesn’t just look amazing, it also provides the best drop protection you can buy.
-
Metallic phone accessories are almost non-existent due to the technical challenges associated with electromagnetic interference. But at AeroCase, we take pride in solving the most interesting and challenging problems.
AeroCase has conducted extensive development testing and verified performance of all wireless communications (Wifi, 4g, lte, and 5g), tap to pay, wireless charging*, bluetooth, and all other wireless functionality of your device. AeroCase guarantees that this functionality will be maintained.
*Note: AeroCase guarantees nominal wireless charging performance when using Apple Magsafe chargers. While many other chargers will work, they have not all been tested and are therefore are not guaranteed.
-
AeroCase’ proprietary design locally reduces stiffness in impact areas to increase energy absorption and spectral attenuation in the event of an impact.
AeroCase is the only phone protection system to incorporate sophisticated structural design in a metallic structure that is conducive to both preserving wireless communications and protecting your device.
And of course, the functional design is accompanied by remarkable looks and finishes that will turn heads wherever you go.
aerocase specifications

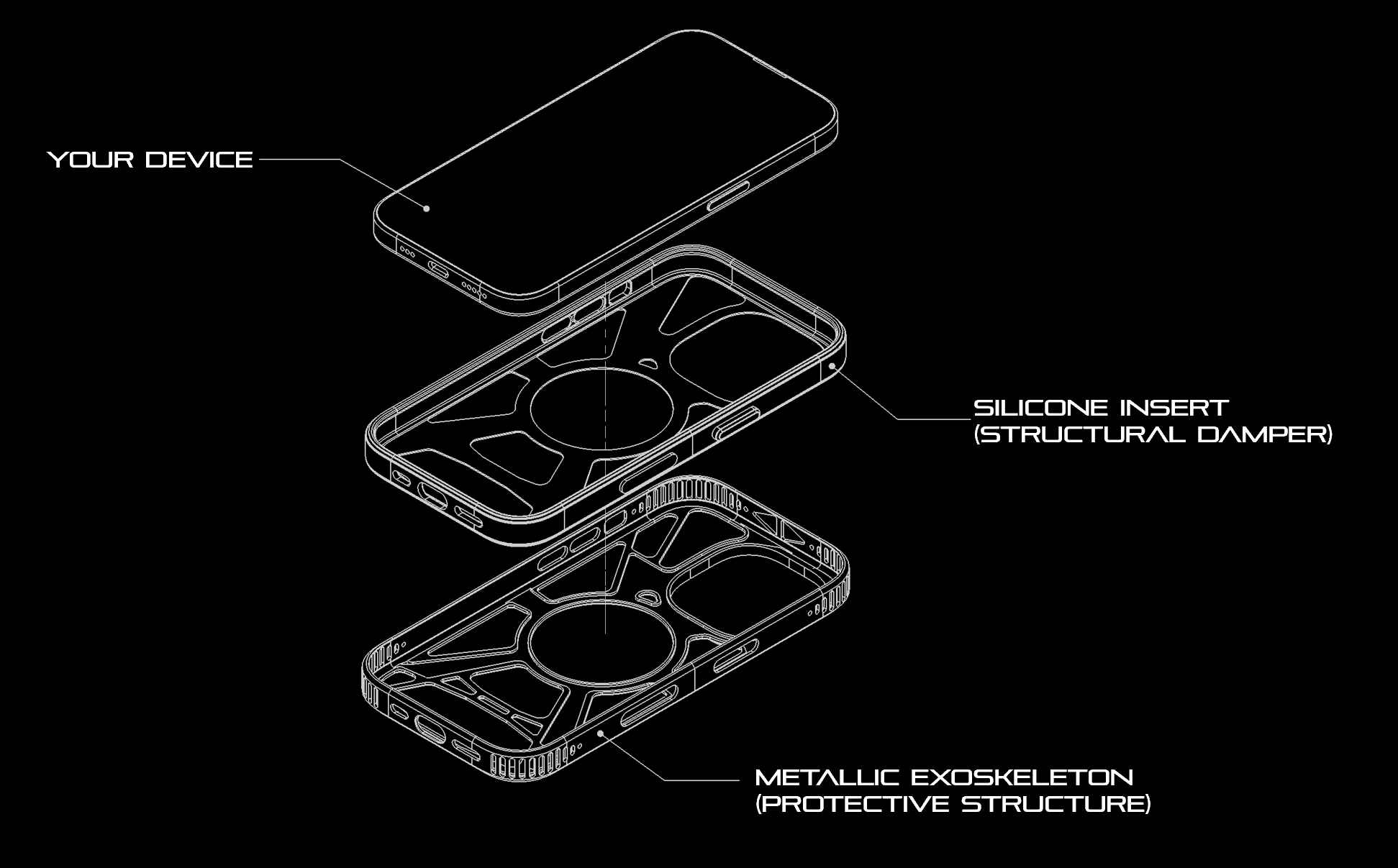

AeroCase design uses a unique combination of metallic exo-skelleton coupled with a silicone insert. The metallic exo-skeleton provides rugged exterior abroasion and impact protection while the silicone insert absorbs energy and ensures that your device receives optimum mechanical isolation from an impact.
MASS PROPERTIES
Total Weight (Housing + Insert)
| MODEL | LB | GRAMS |
|---|---|---|
| JETLINER | 0.08 | 37 |
| PROTO | 0.18 | 80 |
| MARCH 4 | 0.11 | 52 |
While all models provide industry-leading protection for your device and an ultra-luxury experience, each model is offered at a different price point and has a unique feel. Despite the fully metallic exoskeleton design, all AeroCase components are extremely lightweight and fall within the expectation for comfort and ease of use.
MATERIAL SPECIFICATIONS
| MODEL | AEROCASE MATERIAL | FINISH | DENSITY[LB/IN3] | ULTIMATE STRENGTH[KSI] | SURFACE HARDNESS (ROCKWELL) | COMBINED PERFORMANCE ASSESSMENT |
|---|---|---|---|---|---|---|
| JETLINER | ALUMINIUM 6061 T6 | CLEAR ANODIZE | 0.10 |
42 |
60B |
COMMERCIAL FLIGHT RATED |
| PROTO | CRES 304 | PASSIVATION | 0.28 |
73 |
70B |
SPACE FLIGHT RATED |
| MACH 4 | TITANIUM 6-4 | RAW DEBURRED | 0.16 |
138 |
40C |
MANNED SPACE FLIGHT RATED |
assesment critira legenD
MEETS REQUIREMENTS
EXCEEDS REQUIREMENTS
OPTIMUM PERFORFANCE
Each variant of AeroCase is offered with a metallic exoskeleton sourced from premium aerospace materials. We’ve included some of the material specifications for reference.
